Features
The unit is designed for easy transport, installation, and maintenance, featuring real-time monitoring and fault logging.
Modular CTP (cell-to-package) technology supports parallel connectivity for seamless system expansion.
Equipped with a multi-level battery protection system, laser-welded structure, and perfluoroacetone fire suppression system for enhanced safety.
Available in air-cooled and liquid-cooled configurations to suit diverse climates and performance requirements.
Cycles over 8000 times at 70% SOH, ensuring a service life exceeding 15 years (based on one charge per day).
Employs an industrial wall-mounted air conditioning system to maintain optimal operating conditions.
Application
Storing excess energy generated by solar or wind power for later use.
Helping to reduce electricity costs by shifting peak electricity demand to off-peak periods.
Ensuring a stable power supply during grid failures.
Providing reliable power in off-grid areas or unstable grid environments.

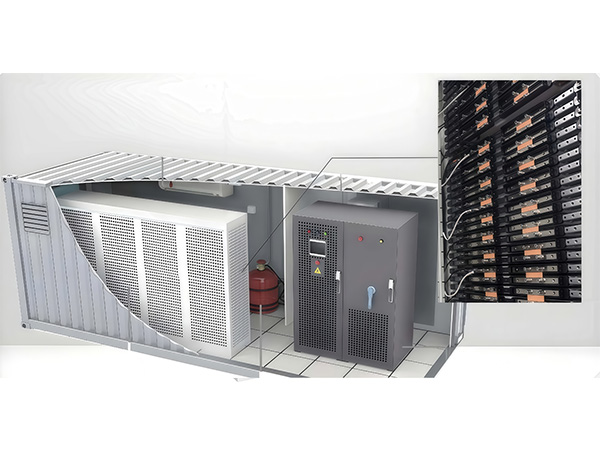

This system utilizes modular battery packs, ensuring ease of installation and maintenance, and supports flexible capacity configurations suitable for a variety of applications, including solar grid connection, emergency power, and grid support. The CTC design eliminates the need for a separate battery enclosure. With an energy efficiency of≥95% and a wide operating temperature range, the system operates reliably under various conditions thanks to its forced air cooling system. Communication interfaces such as CAN, RS485, and LAN enable seamless monitoring. The system’s standard 20-foot container design offers significant advantages in terms of transportation, deployment speed, and space utilization. Its compact size makes it suitable for space-constrained locations, while the pre-integrated design minimizes on-site assembly and accelerates commissioning.
Parameters
| Property | Value |
| Cell Pack CFG | 1P198S *3 |
| Rated Capacity | 950kWh@25℃ |
| Rated voltage | 633.6V |
| Working Voltage | 495V-722.7V |
| System rated power | 500KW |
| Max. Charging Current | 500A |
| Max. Discharging current | 500A |
| Energy Efficiency | ≥95% (0.5C/0.5C, @25℃) |
| Working temp | Charging:0%~55℃; Discharging: -30 ~55℃℃ |
| Container Type | 20’HQ |
| Thermal design | Air Cooling |
| Communication | CAN, RS485, LAN |
| Application Frequency regulation | Peak shaving, UPS, New energy consumption, Power support |
