Introduce

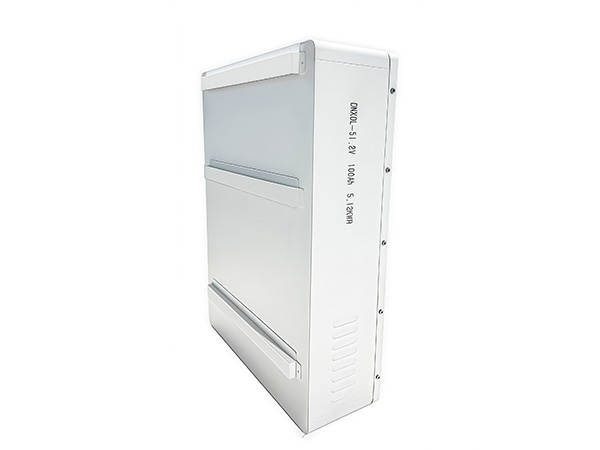

This 5kWh to 80kWh stackable home energy storage system is a versatile and scalable option for residential use. Users can stack multiple storage units to meet energy needs ranging from 5kWh to 80kWh and seamlessly integrate solar and grid power. The system integrates an inverter and system controller to ensure reliable operation. Remote monitoring and management are possible via Wi-Fi connectivity and a control app. Utilizing laser welding technology, it can withstand over 6000 welding cycles and has a lifespan exceeding 15 years. The product has obtained CE, UN38.3, MSDS, and 3C certifications, ensuring safety and quality.
Features
The system is stackable, with capacity flexibly expandable from 5kWh to 80kWh to meet diverse energy needs.
Seamlessly integrates solar and grid power.
Manufactured using laser welding technology for durability; equipped with a system controller and integrated inverter for smooth operation.
Built-in Wi-Fi and a control app enable convenient remote management
Capable of over 6000 charge cycles at 70% State of Health (SOH), with a lifespan exceeding 15 years (daily charging).
Discharge temperature range of -20°C to 55°C, charging temperature range of 0°C to 55°C.
Complies with international standards, including CE, UN38.3, MSDS, and 3C.
Application
This system is ideal for residential, small business, and light commercial applications that require reliable energy storage and transmission. It is particularly suitable for sites integrating renewable energy sources such as solar panels, as it supports both solar and grid power.
Parameters
| Property | Value |
| Cell Type | Lithium Iron Phosphate Battery |
| Nominal Voltage | 51.2V |
| Voltage Range | 44.80~58.40V |
| Rated Capacity @ BOL | 5120Wh @ 25℃, 0.5C |
| Rated Charging and Discharging Power | 5000W |
| Discharge Temperature Range | -20~55℃ |
| Charging Temperature Range | 0~55℃ |
| Weight of Battery Box | ≤50kg |
| Weight of the Main Control Box | ≤20kg |
| Protection Level | IP32 |
| Working Humidity Range | 0~95% (non-condensing) |

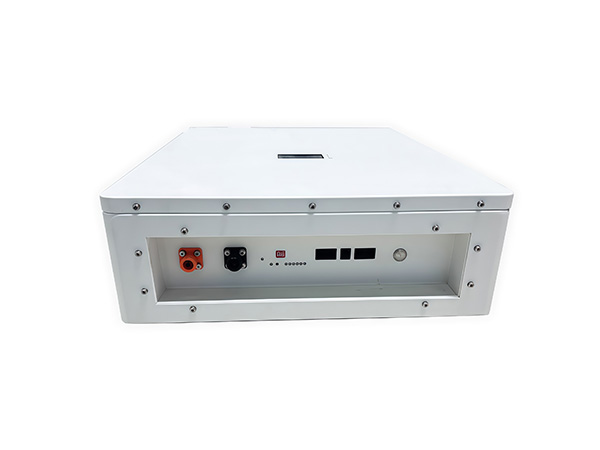

| Battery Box Size | 550 × 480 × 150mm (excluding base) |
| Main Control Box Size | 550 × 480 × 150mm |
